Description

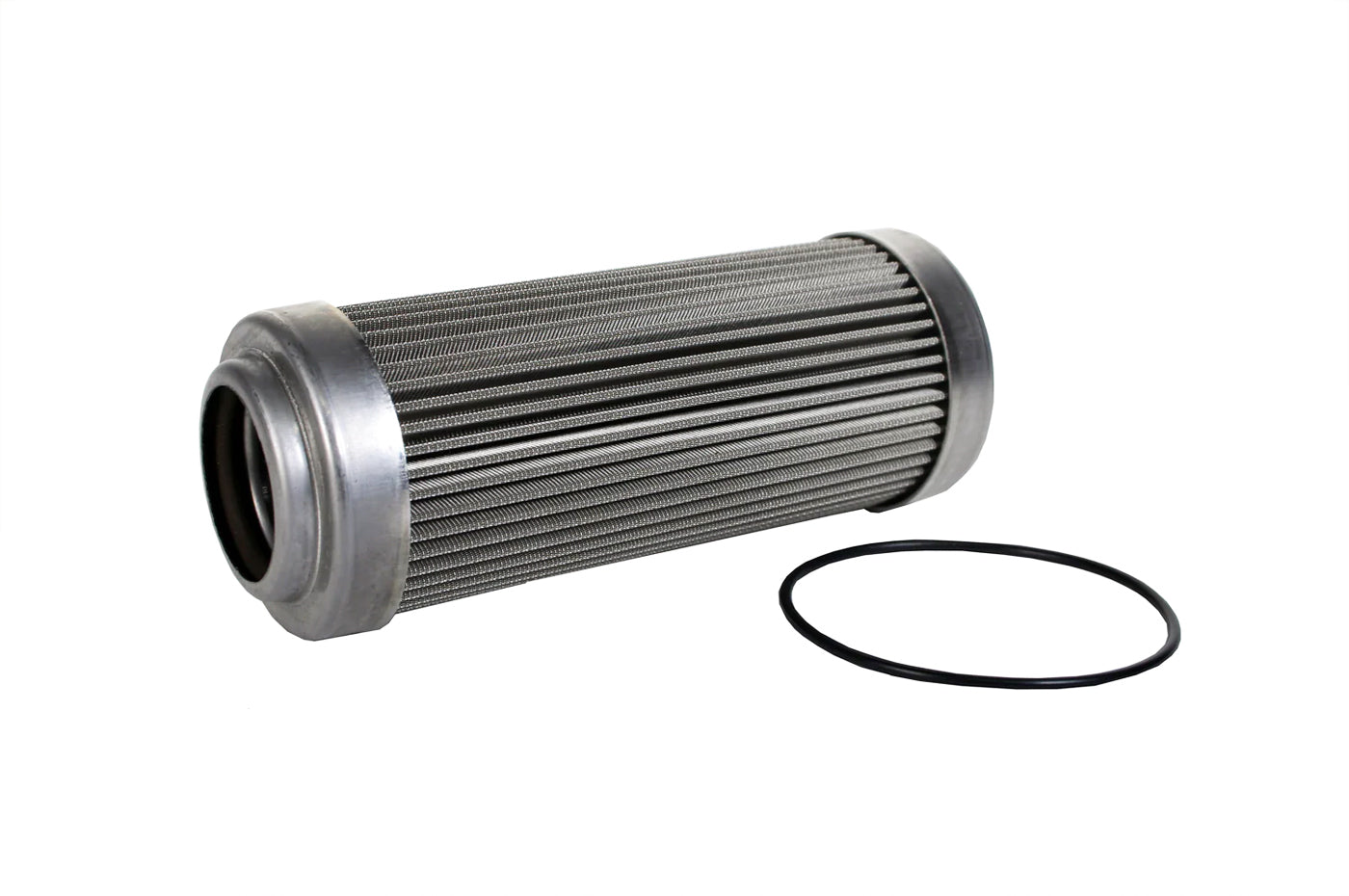

Replacement 100 micron stainless steel mesh fuel filter internal element for Aeromotive ORB-12AN Pro-Series fuel filters.
Vehicle Fitment:
? Direct Replacement Aeromotive 12302, 12352, 12309 and 12332.
? Suitable as a pre-filter for fuel pumps up to 6 GPM.
? May be used as a post filter with larger, 12-Series and Spur Gear Mechanical Fuel Pumps up to 32-GPM
? Compatible with gasoline, diesel, ethanol and methanol fuels.
? Fits all 2.5″ x 7″ long ORB-12 Aeromotive filter housings.
Purchase Includes:
(1) Element with O-Ring
More from Aeromotive:
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Recommended for applications burning pump gas, racing gas, diesel fuel, jet fuel, av-gas, etc.
- Approved for use in alcohol fuels including ethanol and methanol.
- Over 90-sq. inches of element surface area supports extreme flow while providing good service life.
- Cleanable 100-micron Stainless Steel mesh construction.
- Flow capacity of up to 1,600 GPH (26.6 GPM) with less than 1-PSI pressure drop.
- Supports up to 14,700 plus Flywheel HP, Forced Induction, on gasoline.
- Supports up to 10,600 Flywheel HP, Forced Induction on Ethanol.
- Supports up to 5,000 Flywheel HP, Forced Induction on Methanol
- Ideal as a pre-pump filter with gasoline, ethanol and Methanol burning engines with medium to large Aeromotive fuel pumps from the Eliminator pump through the 6 Series Mechanical pump.
- Popular as a post pump filter with 12 Series (belt and hex driven) mechanical fuel pumps and Aeromotive Spur Gear Pumps up to 32 GPM.
Part Number: 12602
UPC: 00684980000269
