Description

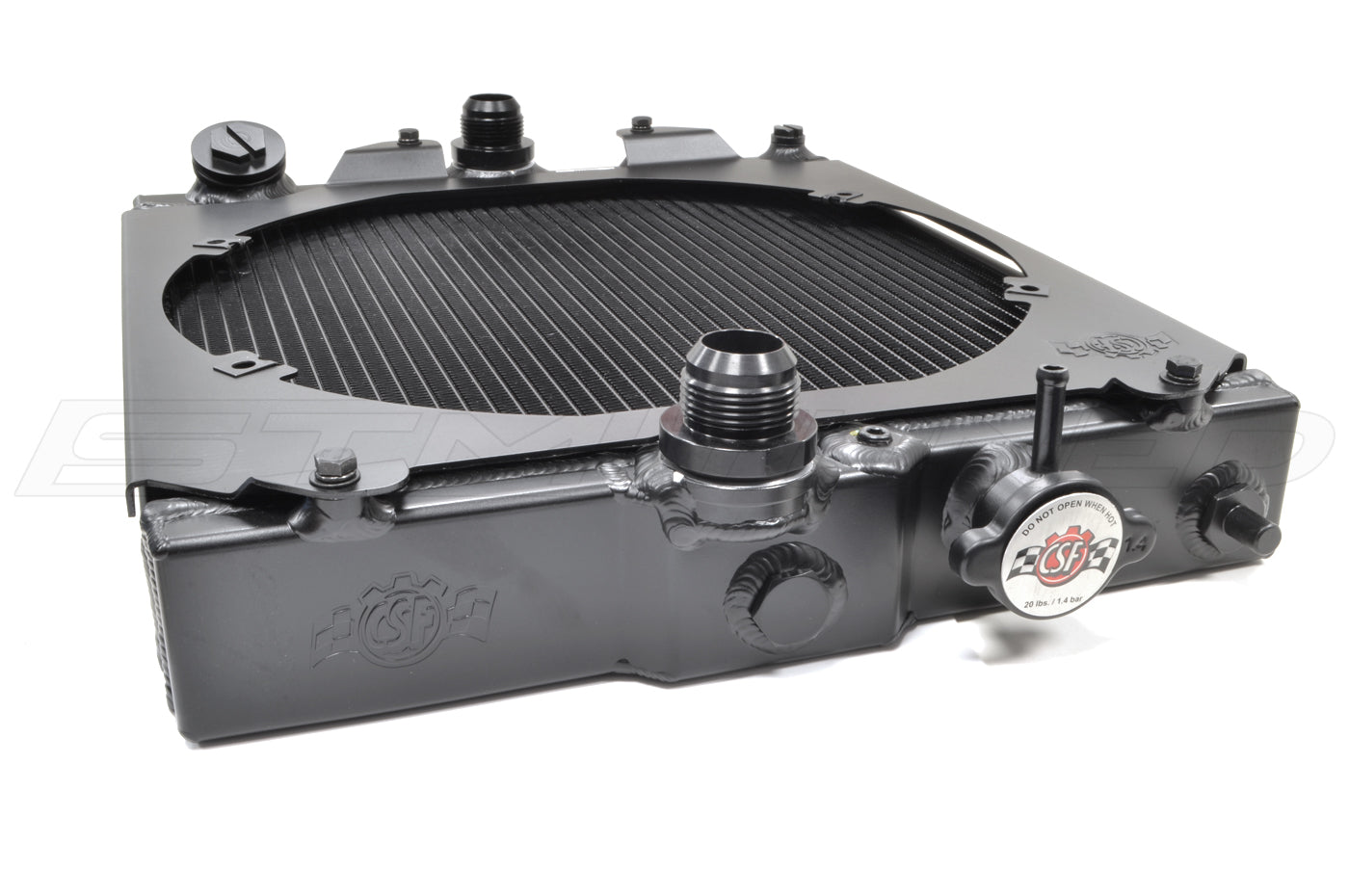

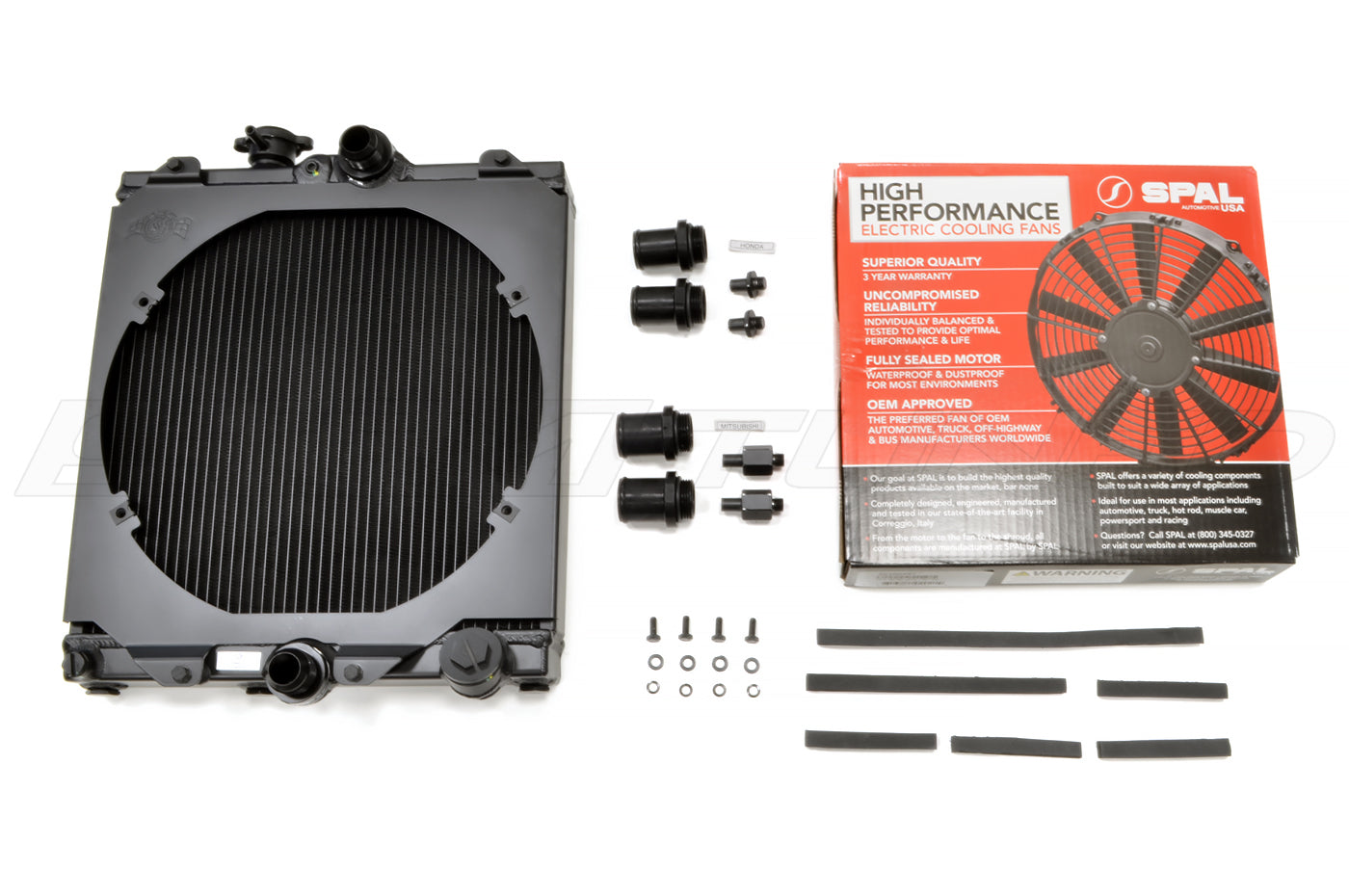

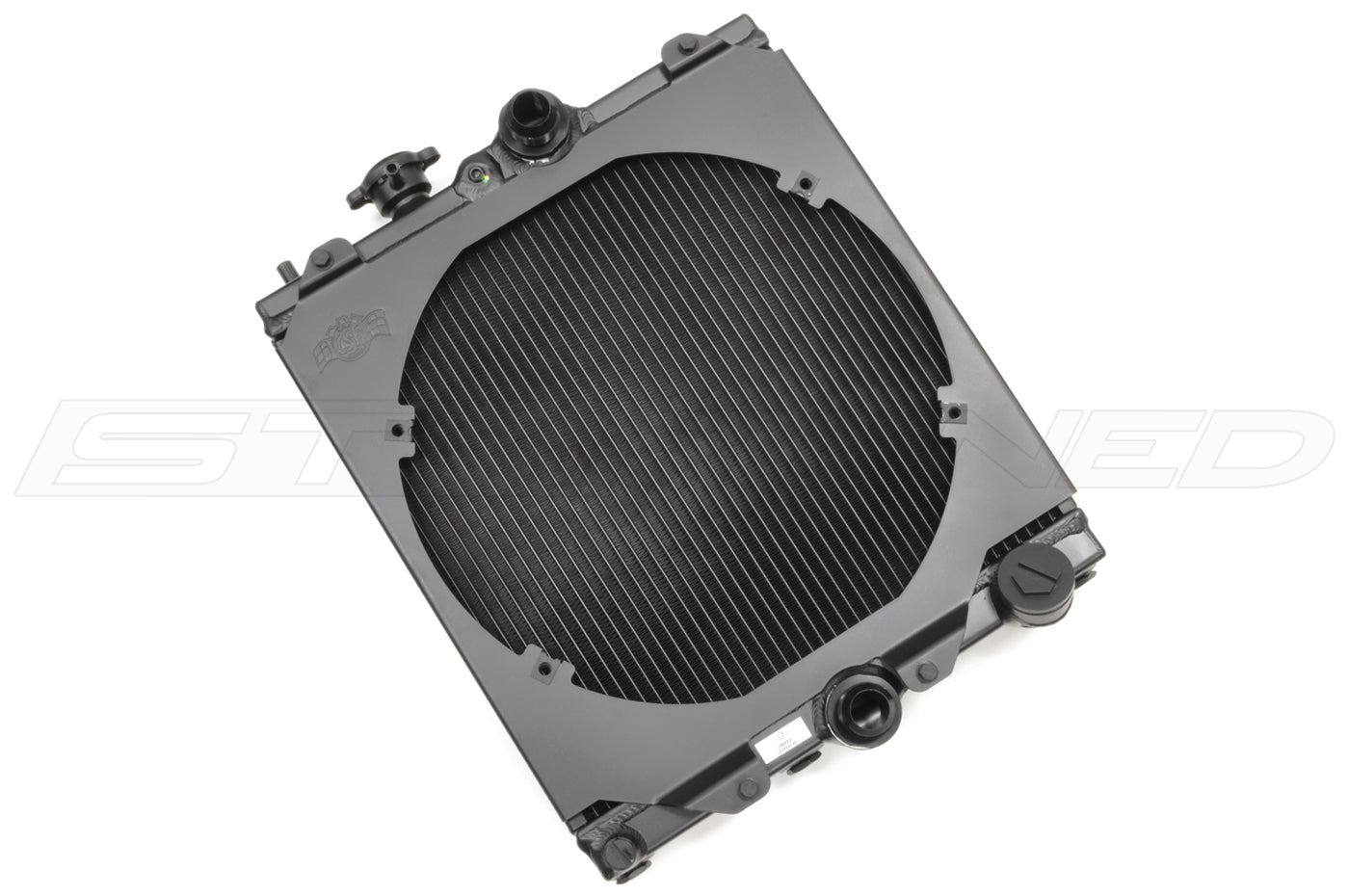

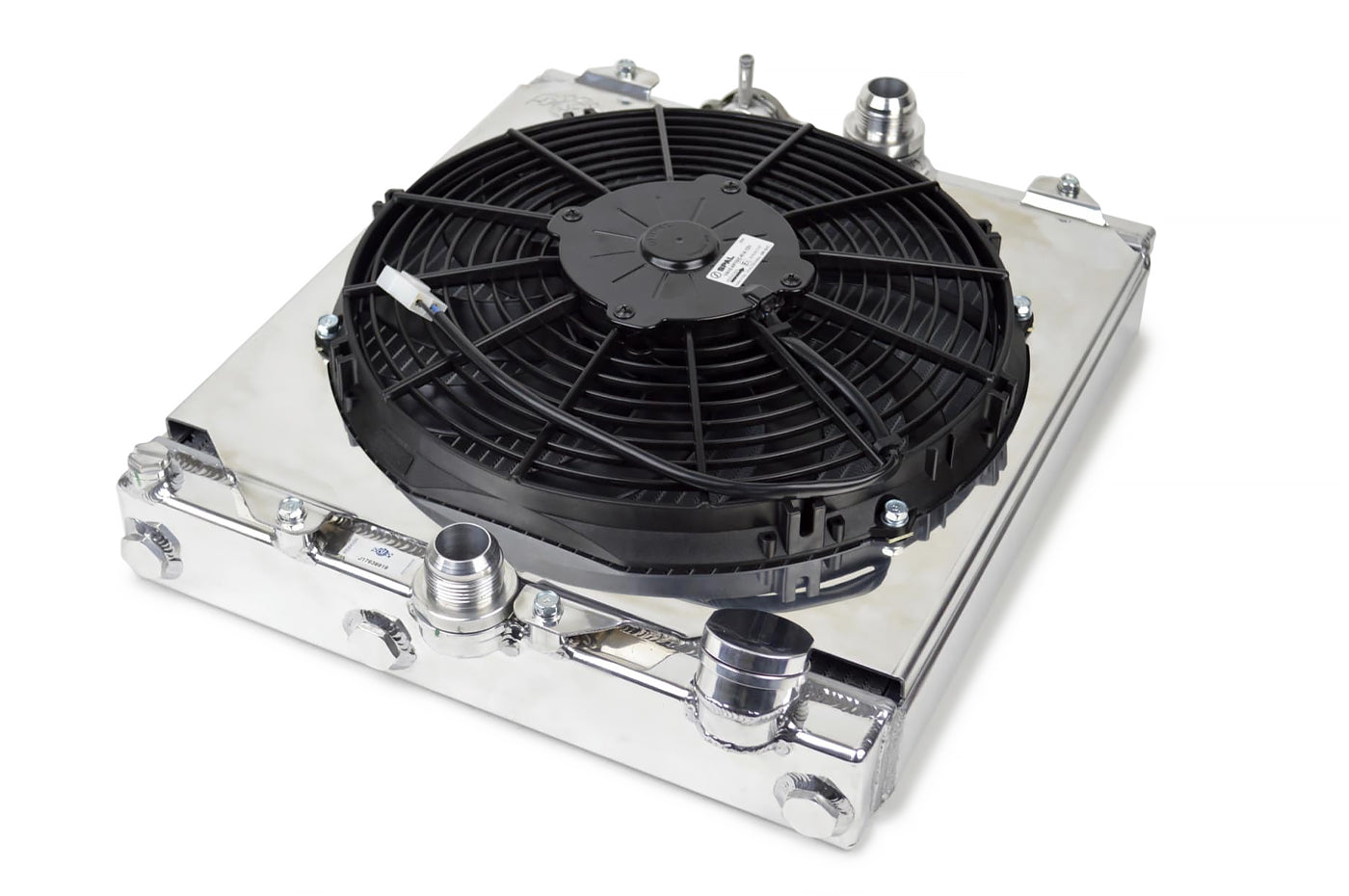

This CSF ultimate half-sized radiator kit fits Evo 7/8/9 and EG/EK Civic. Comes with an aluminum fan shroud and 12″ SPAL fan. Includes screw-in hose outlet fittings that can be used with the factory hoses or for -16AN. Available polished aluminum or stealth black.
Vehicle Fitment:
2001-2006 Evolution 7/8/9
1992-2000 Honda Civic EG/EK
Can also be used for a universal custom fit
More from CSF:
CSF has done it again! Taking it one step further with everything we’ve learned and developed on our other industry-leading universal radiators, CSF has created the Ultimate half radiator with direct fitment for the most popular 92-00 Honda Civic platform. Even better, it can be used as a universal radiator and comes with a direct-fitment kit for Mitsubishi Evolution 7/8/9 models as well. A true innovation of the industry?s #1 selling model.

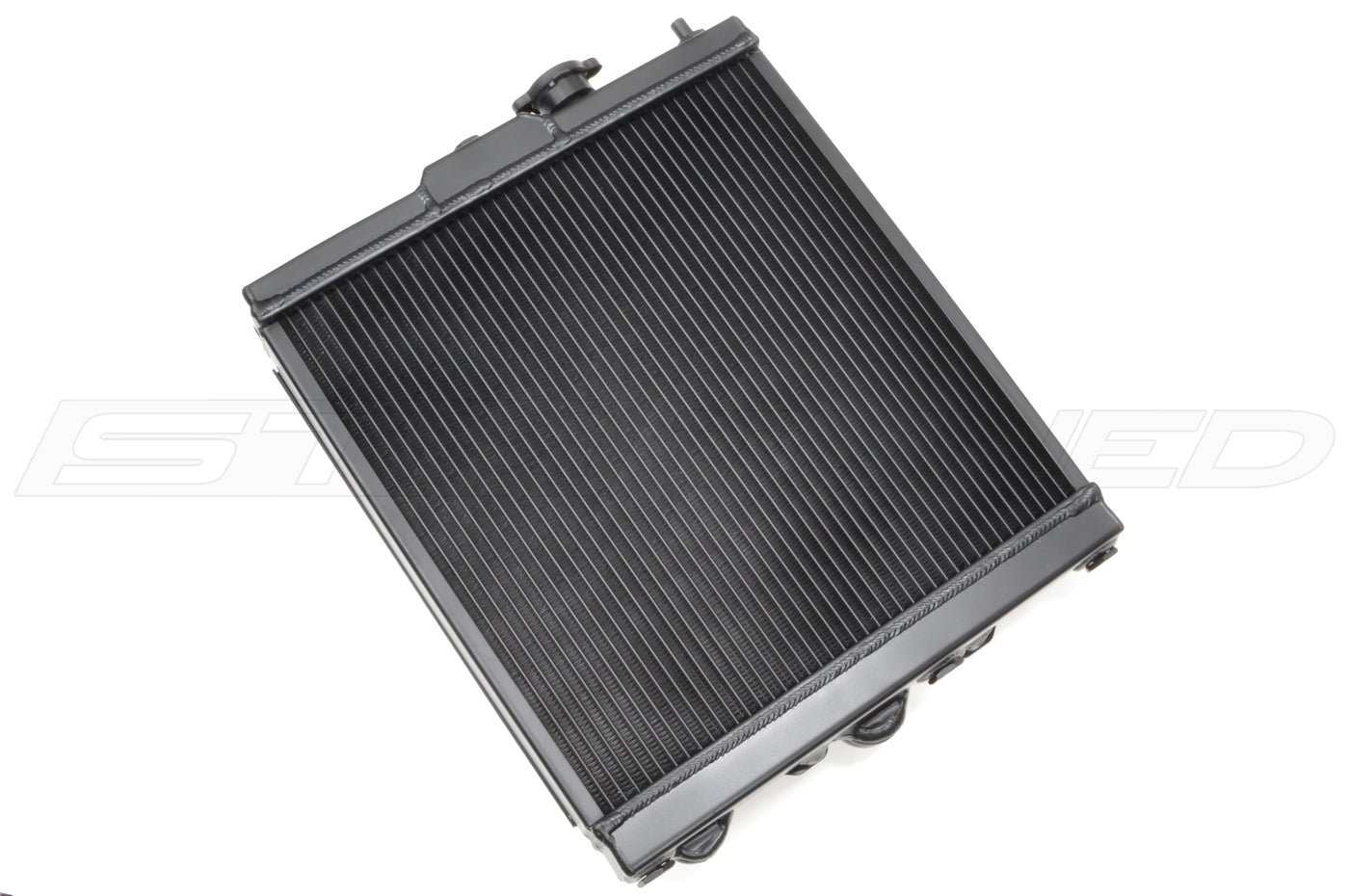

- 2 Row 42mm High-Performance Core by CSF
- B-Tube Technology and Ultra-Efficient 6mm Tall Multi-Louvered Fins
- -16AN Male Connections

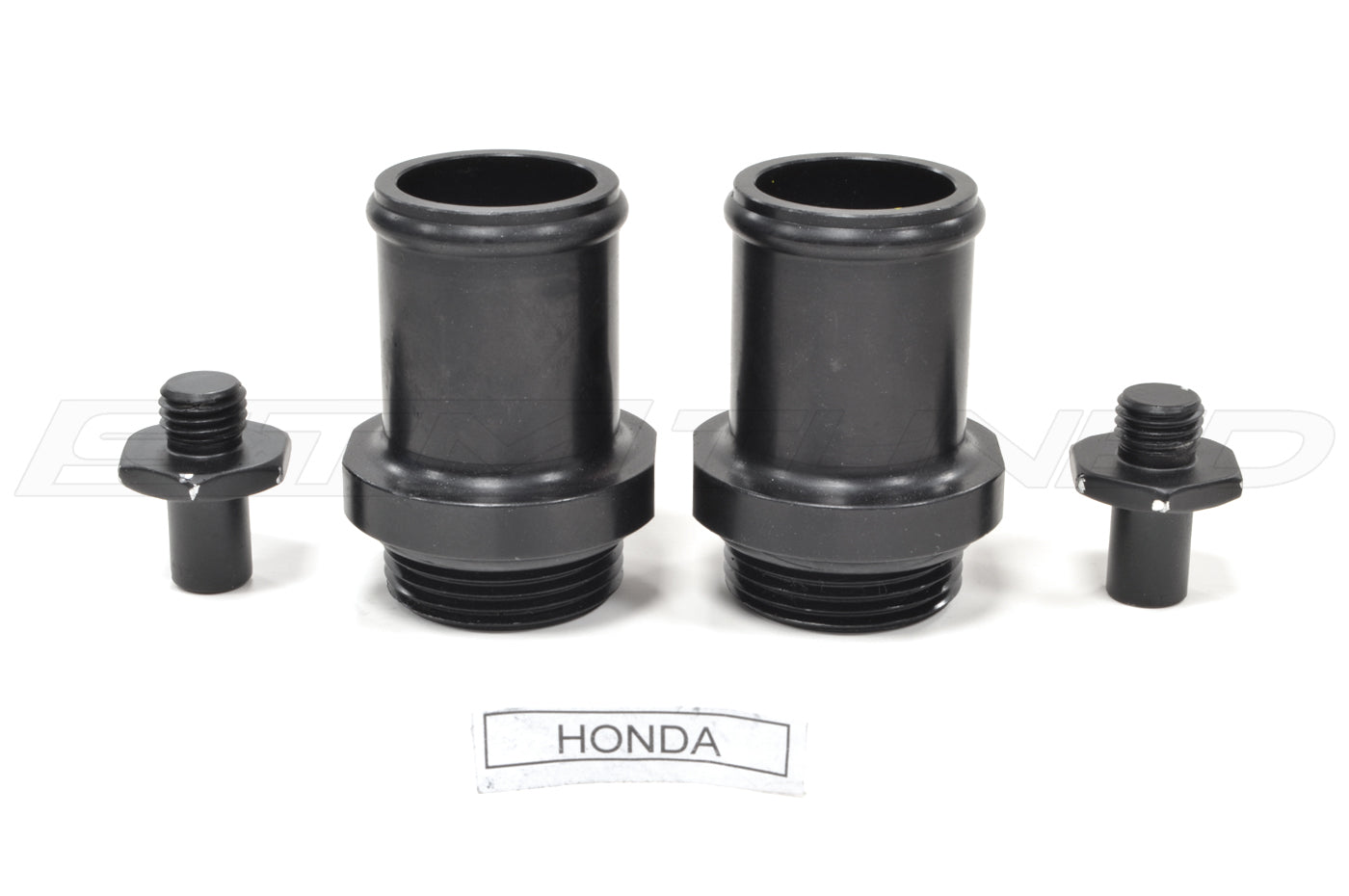

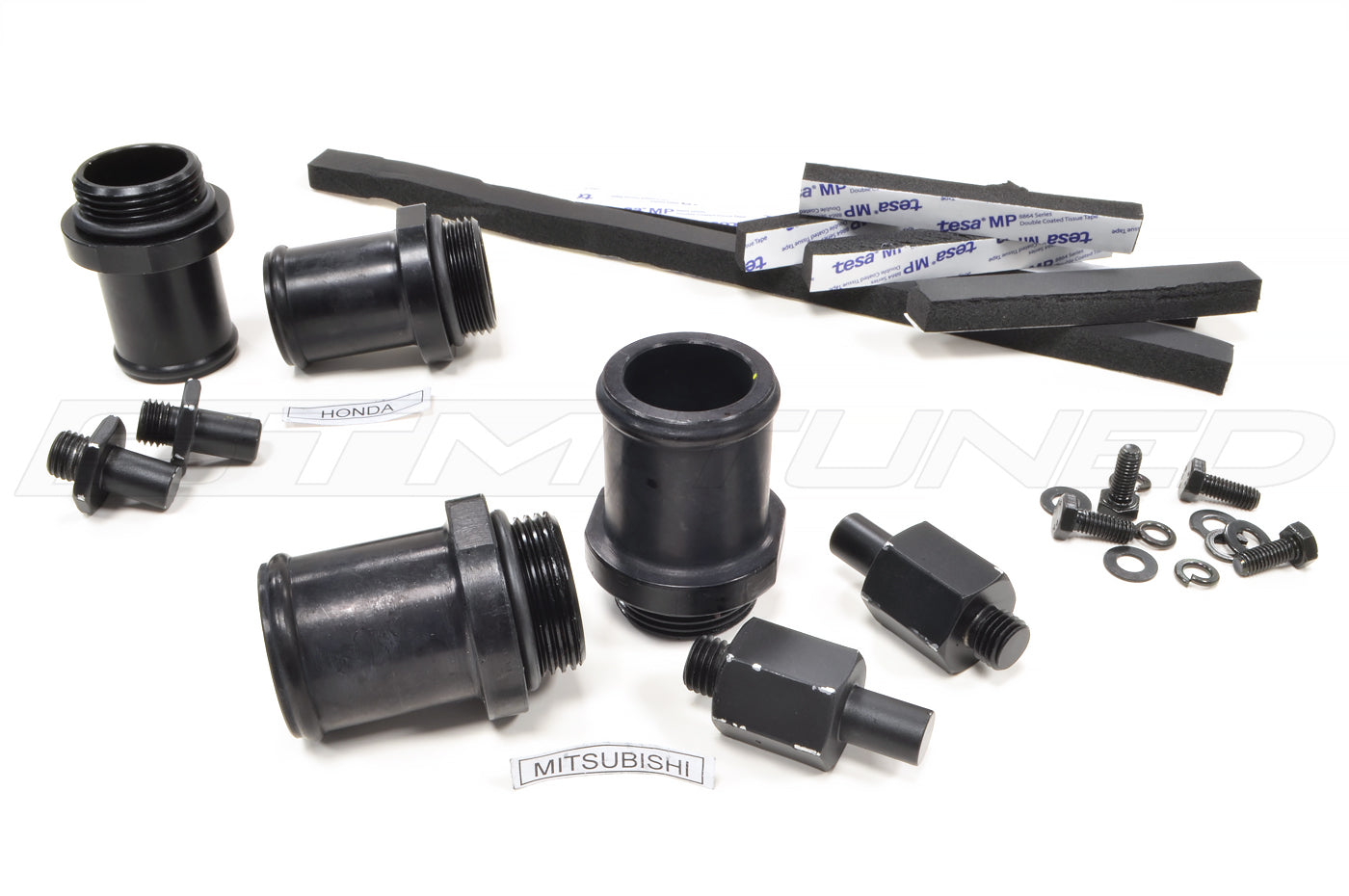

- OEM Style Fittings for Honda/Acura 1.25″

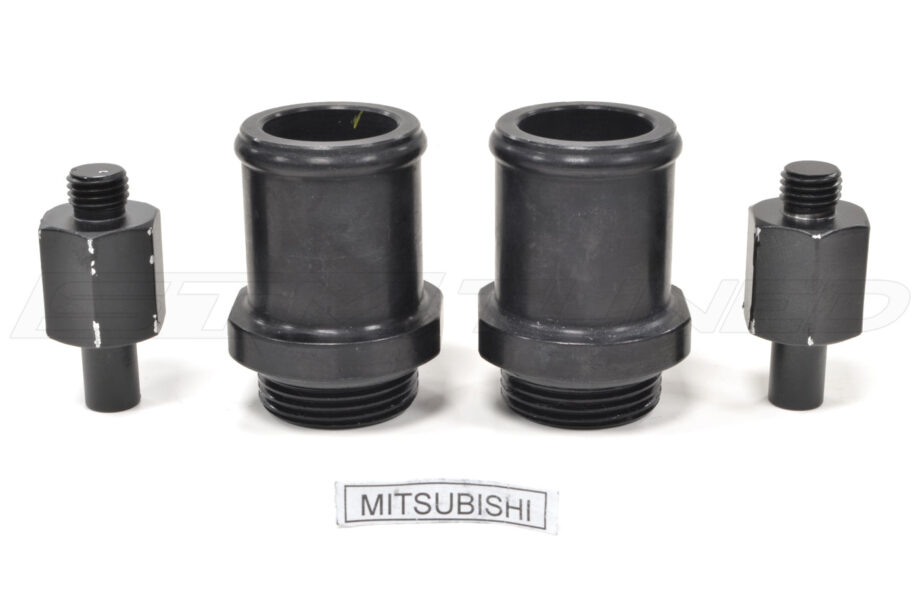

- OEM Style Fittings for Evo 7/8/9 1.375″
- Threaded Bung size and thread pitch: 1 5/16? x 12G
- Universal Mounting Pins Included ? 2 Different Lengths for Multiple Installation Configurations
- Multiple Mounting Pin Locations on Both Top and Bottom End Tanks
- Dual Outlet Design for Multiple Plumbing Options
- 1/8″ NPT Temperature Sensor Port

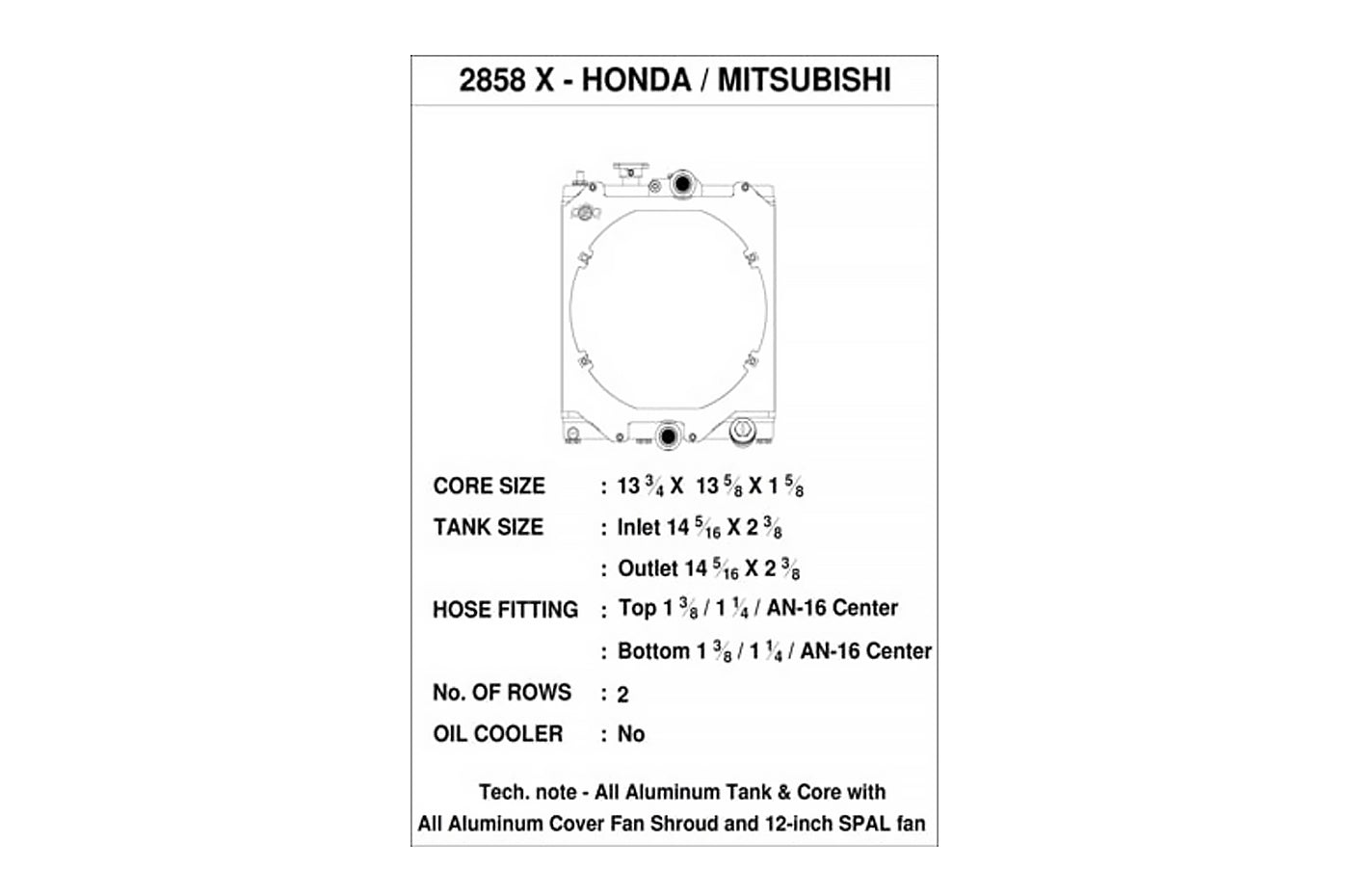

- Overall Width: 14.55″ (369.5mm)
- Overall Height (not including Fittings and Cap): ~16″ (407mm)

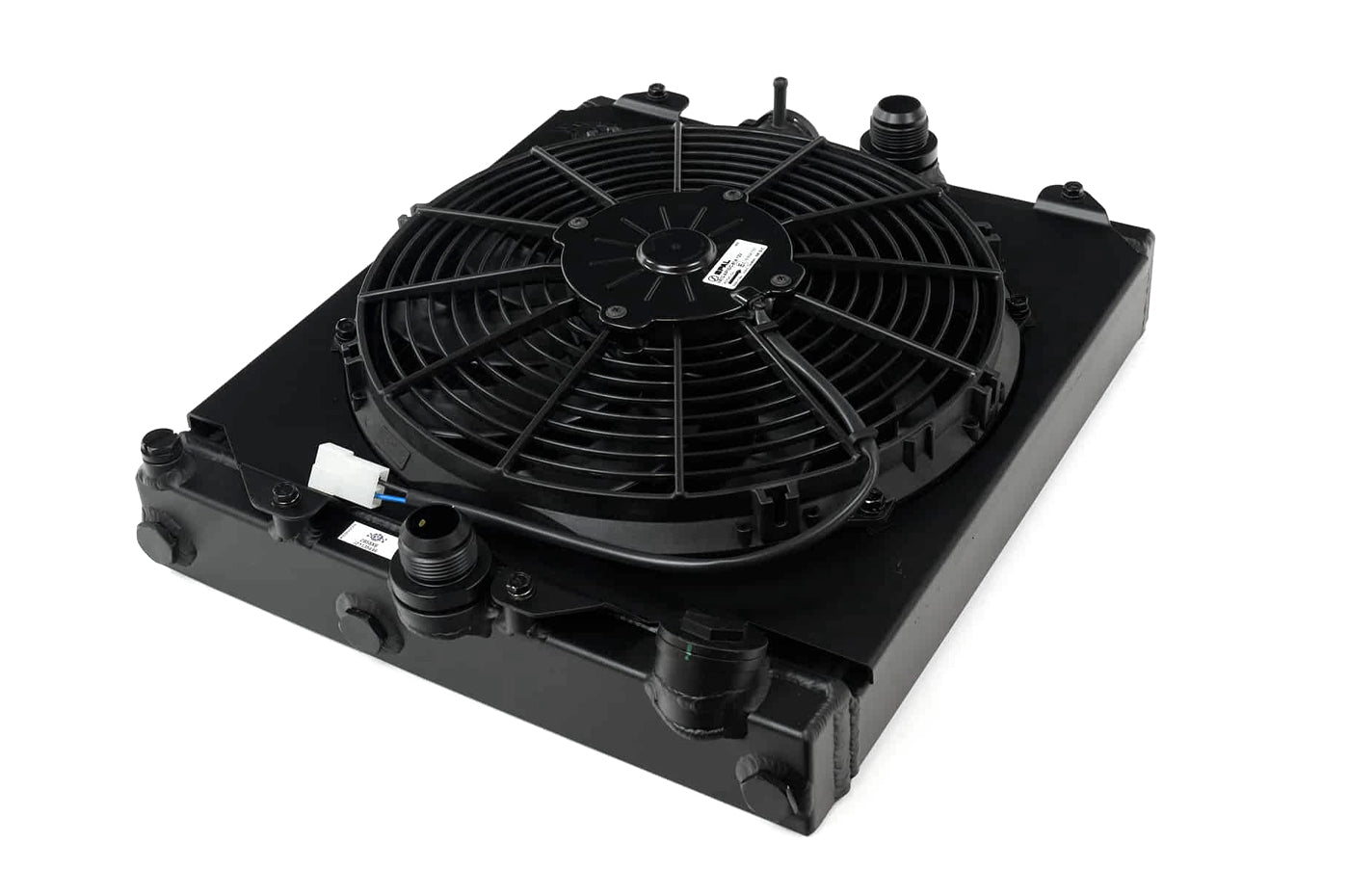

- Includes 12″ SPAL 909 CFM Puller Fan (30100467)
| Part Number: | Finish: |
| 2858X | Mirror Polish |
| 2858XB | Stealth Black (pictured in detail) |
